Human CD47 DTSet enzyme-linked immunoassay kit
| Specification | 96*5 Test；96T*15 Test |
|---|---|
| Standard Curve Range | 125 pg/ml-8000 pg/ml |
| Standard Curve Gradient | 7 Points/3 Folds |
| Number of Incubations | 2 |
| Sample Volume | 50 μl |
| Type | Not Ready-to-Use |
| Test Duration | 120min |

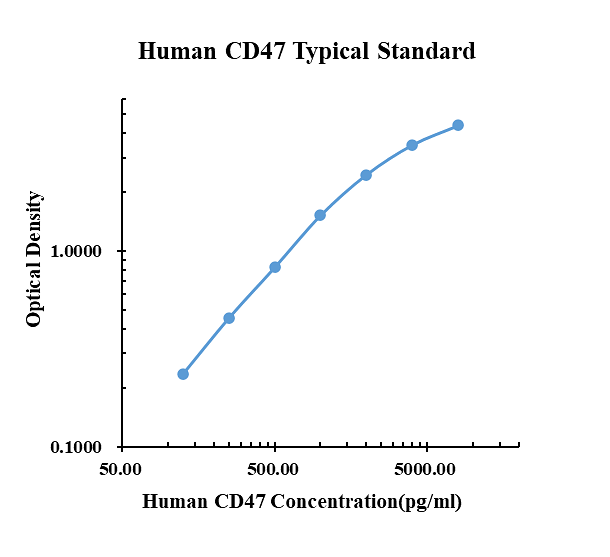

| pg/ml | O.D. | Average | Corrected | |
|---|---|---|---|---|
| 0.00 | 0.0426 | 0.0313 | 0.0369 | |
| 125.00 | 0.2784 | 0.2635 | 0.2710 | 0.2340 |
| 250.00 | 0.4737 | 0.5059 | 0.4898 | 0.4529 |
| 500.00 | 0.8718 | 0.8506 | 0.8612 | 0.8243 |
| 1000.00 | 1.5880 | 1.5310 | 1.5595 | 1.5226 |
| 2000.00 | 2.4850 | 2.5100 | 2.4975 | 2.4606 |
| 4000.00 | 3.4740 | 3.5860 | 3.5300 | 3.4931 |
| 8000.00 | 4.3518 | 4.5054 | 4.4286 | 4.3917 |
Product Features
- Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
- Development protocols are provided to guide further assay optimization
- Assay can be customized to your specific needs
- Economical alternative to complete kits
Kit Content
- Capture Antibody
- Detection Antibody
- Recombinant Standard
- Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)
Other Reagents Required
DTSet Ancillary Reagent Kit (5 plates): containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and assay buffer.
- 96 well microplates: YOUKE Life, Catalog # DSEP01. Plate Sealers: YOUKE Life, Catalog # DSSF01.
- Coating Buffer: 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2-7.4, 0.2 μm fi ltered . YOUKE Life, Catalog # DSCB01.
- Blocking Buffer: YOUKE Life, Catalog # DSBB01.
- Wash Buffer: 0.05% Tween 20 in PBS, pH 7.2-7.4. YOUKE Life, Catalog # DSWB01.
- Assay Buffer: 0.5%BSA，0.05%Tween20，PBS Solution.YOUKE Life, Catalog # DSAB01
- Substrate Solution: Tetramethylbenzidine. YOUKE Life, Catalog # DSTS01.
- Stop Solution: 0.5mol/ml H2SO4. YOUKE Life, Catalog # DSSS01.
Product Data Sheet
Background: CD47
CD47 (also integrin-associated protein/IAP and OA3) is a variably glycosylated, 40‑60 kDa atypical member of the Ig-Superfamily. It is expressed on almost all cell types, including erythrocytes. CD47 binds to TSP-1 and SIRP alpha, and forms a membrane complex with CD36 and alpha v beta 3. Mature human CD47 is a 305 amino acid (aa), five-transmembrane glycoprotein. It contains a 123 aa extracellular region (aa 19‑141) that is characterized by the presence of a V-type Ig-like domain (aa 19‑127), and a 34 aa C-terminal cytoplasmic tail that interacts with Gi alpha subunits. Three splice variants occur over aa 293‑323. Over aa 19‑139, human CD47 shares 61%, 71% and 66% aa identity with mouse, porcine and canine CD47, respectively.
